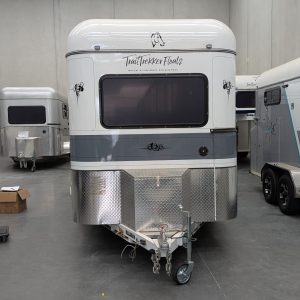

2023 3HAL-5075 PAK152

$34990

SPECIFICATIONS

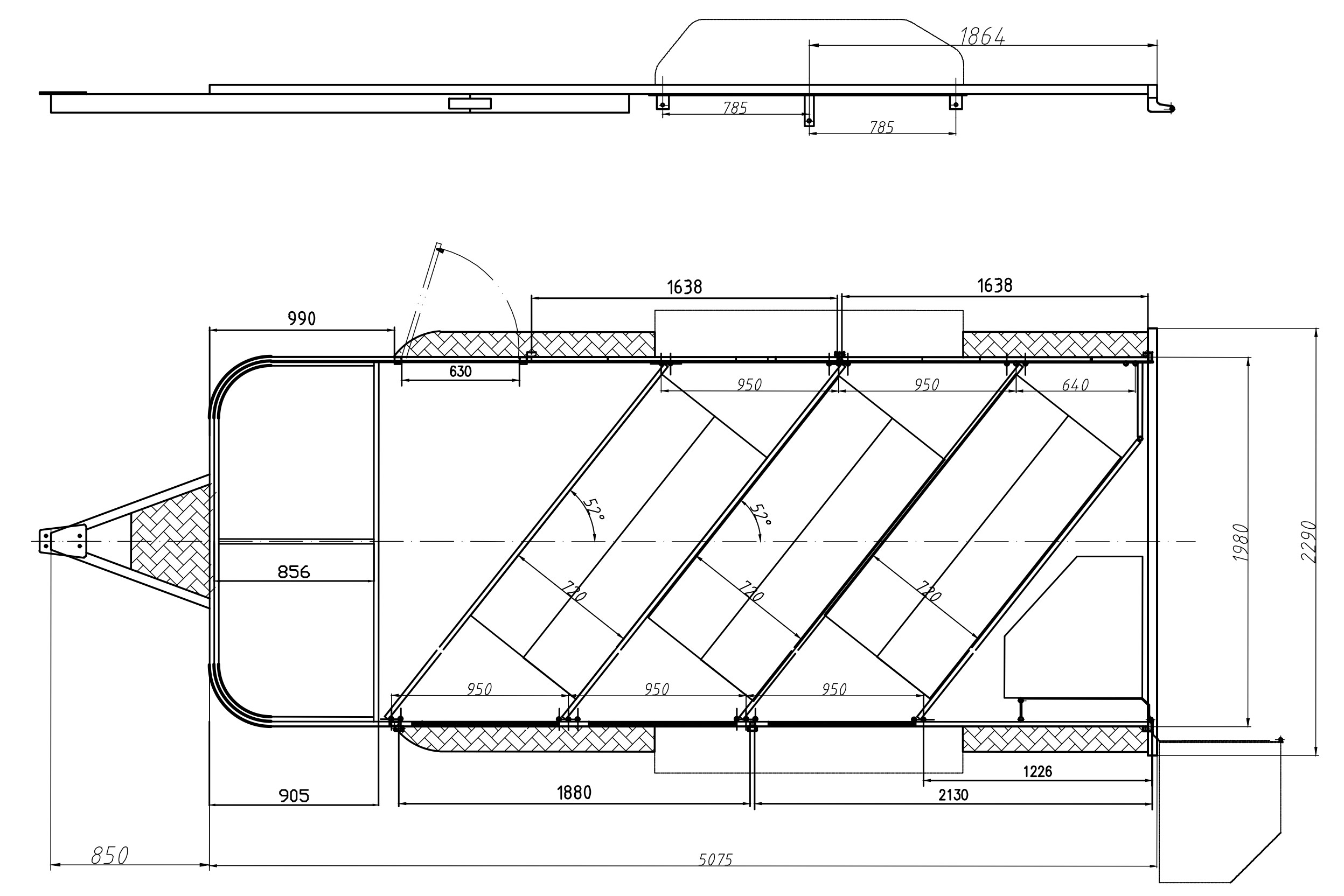

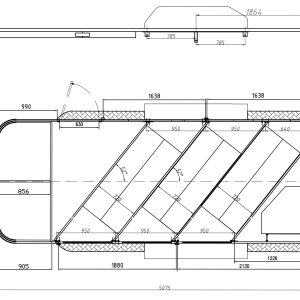

• Bay Size Length (MM) 2450
• Bay Size Width (MM) 720
• ATM (KG) 3500
• Tare Mass (KG) 2100
• Ball Weight (KG) 230
• Payload (KG) 5075
• Travel Length (MM) 5925
• Travel Width (MM) 2500
• Travel Height (MM) 2650
• Internal Length (MM) 5025
• lnternal Width (MM) 1930
• Internal Height (MM) 2225
• Body Length (MM) 5075
• Body Width (MM) 1980
• Body Height (MM) 2280

INCLUSIONS

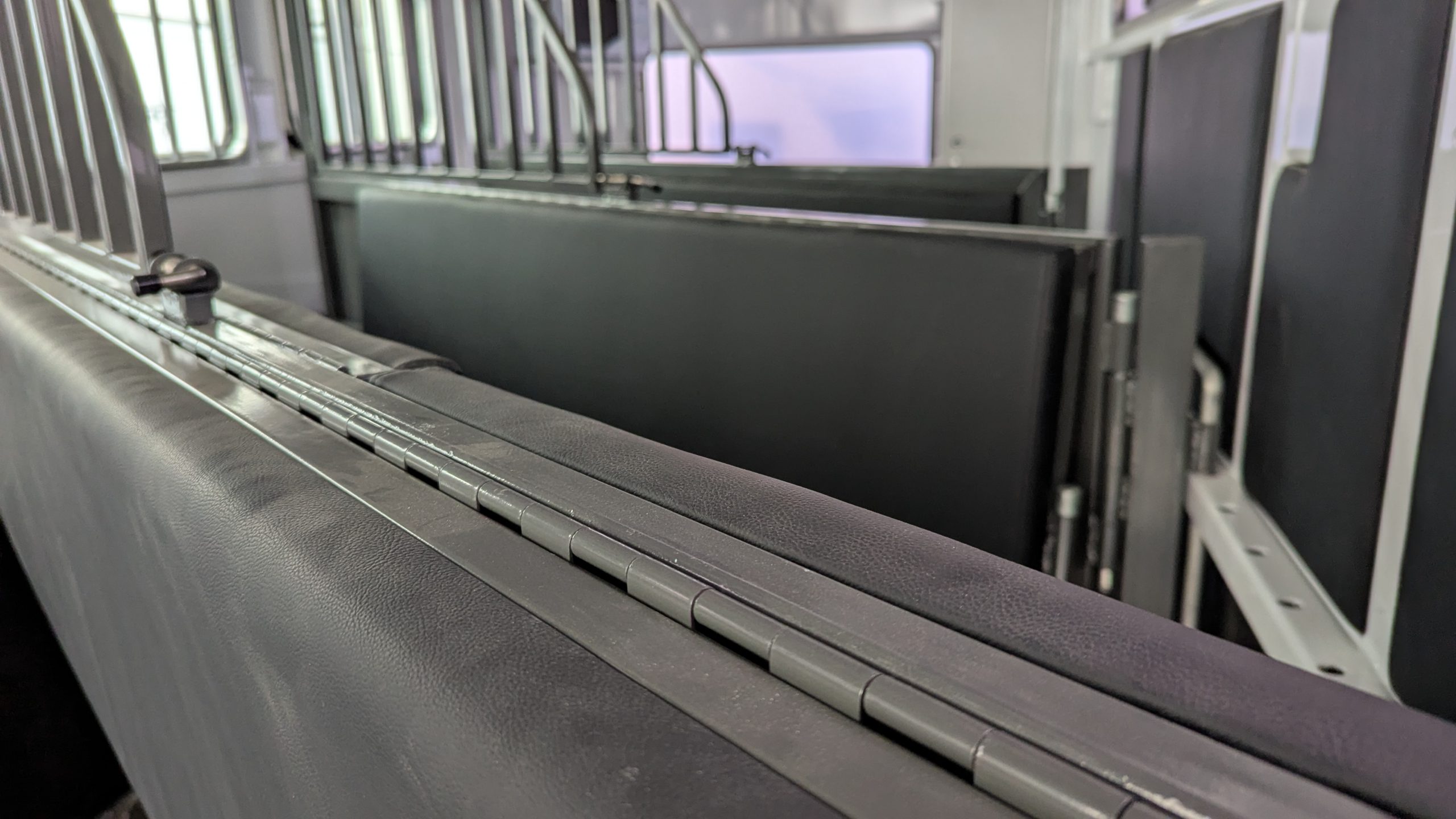

• 3* Foldable Barrier Bed in Horse Zone
• Chassis RHS Galvanised 3.5mm-4mm
• Drawbar RHS 100 X 50 X 5 Galvanised Covered by High Strength Aluminium
• 2 X Australian Standard Safety Chains
• 50mm Electric Coupling 3500kg with Park Brake Handle
• Heavy Duty Swing up Jockey Wheel
• Expocy Zinc Paint on Galvanised RHS Frames
• Heavy Duty Checker Plate Side Steps
• 60L Fresh Water Tank & Checker Plate Protector

OTHER INFORMATION

• Solid 50mm x 50mm Sqaure Tandem Axle 2000kg
• 60mmX7mm Heavy Duty Rocker Roller Leaf Spring
• Electric Drum Brakes with Electric Backing Plate
• Mechanical Hand Brake
• 14″ Alloy Wheel and Sparewheel
• Commercial Light Truck Tyre 195R14C
• Embossed Mud Flaps Rear
• Customize Metallic PPG Paint
• Fully Welded RHS Galvanised Steel Wall Frame 2.5mm
• Galvanised Sheet Panel Walls Body with Aluminium Checker Plate
• Special Molded FRP Fiber-reinforced Polymer Fibre Glass

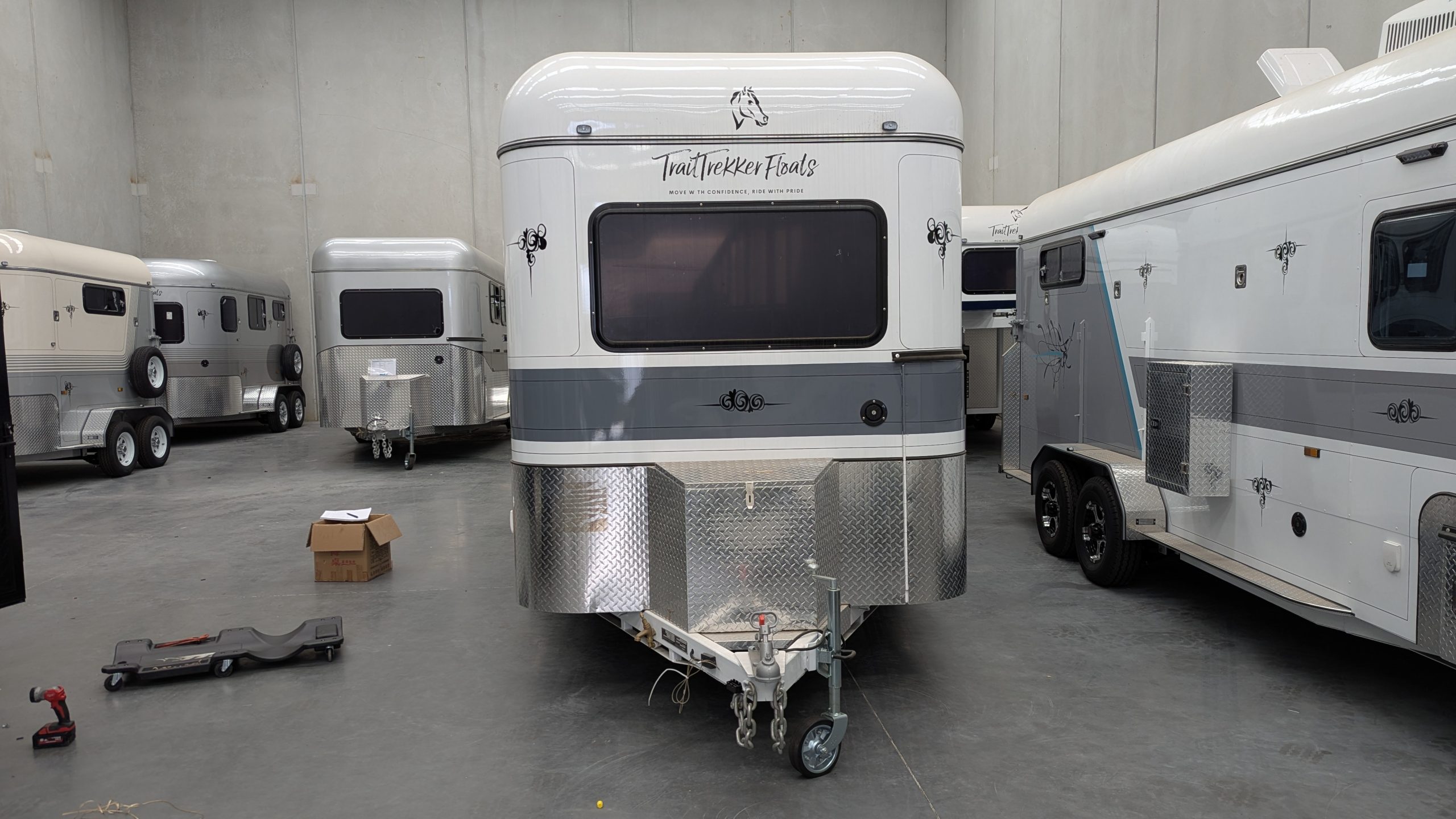

• Checker Plate Stone Guard
• Quality Waterproof & Anti-Rust Compression and T Locks
• Horse Rings and HD Tie ups
• Double Panel Aluminum Portable Float Holding Yard
• Drop Down Slide Windows with Fly Screens
• Pop up Internal Air Vent
• Standard Steel Entry Door

• Aluminum Door with High Intensity Anti-Rust Gas Strut

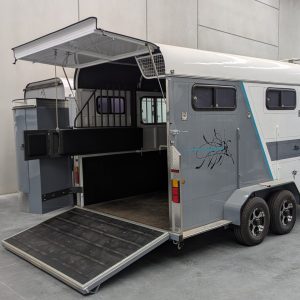

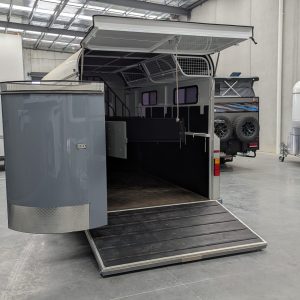

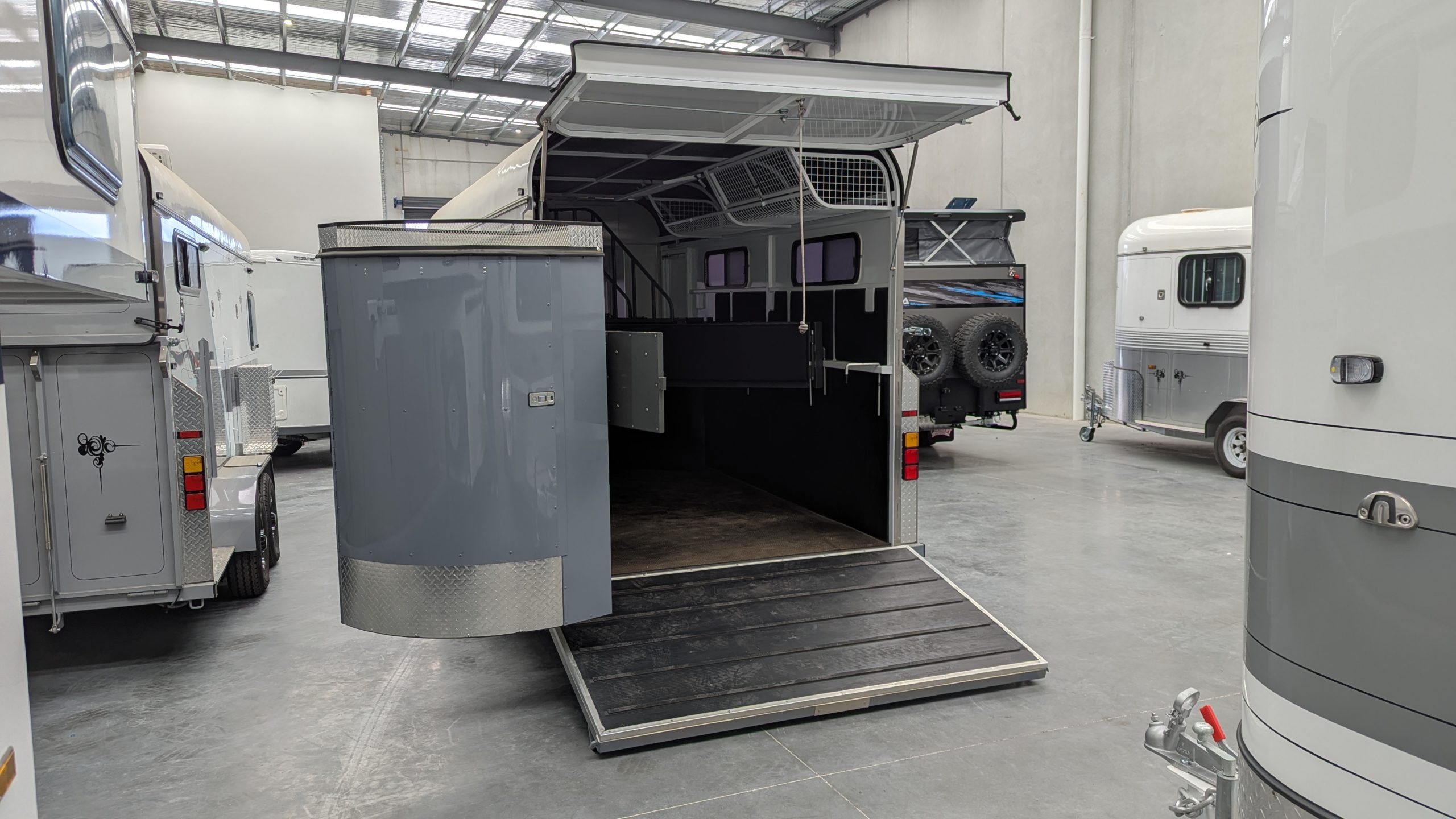

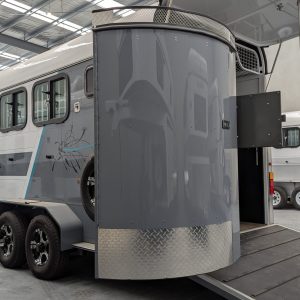

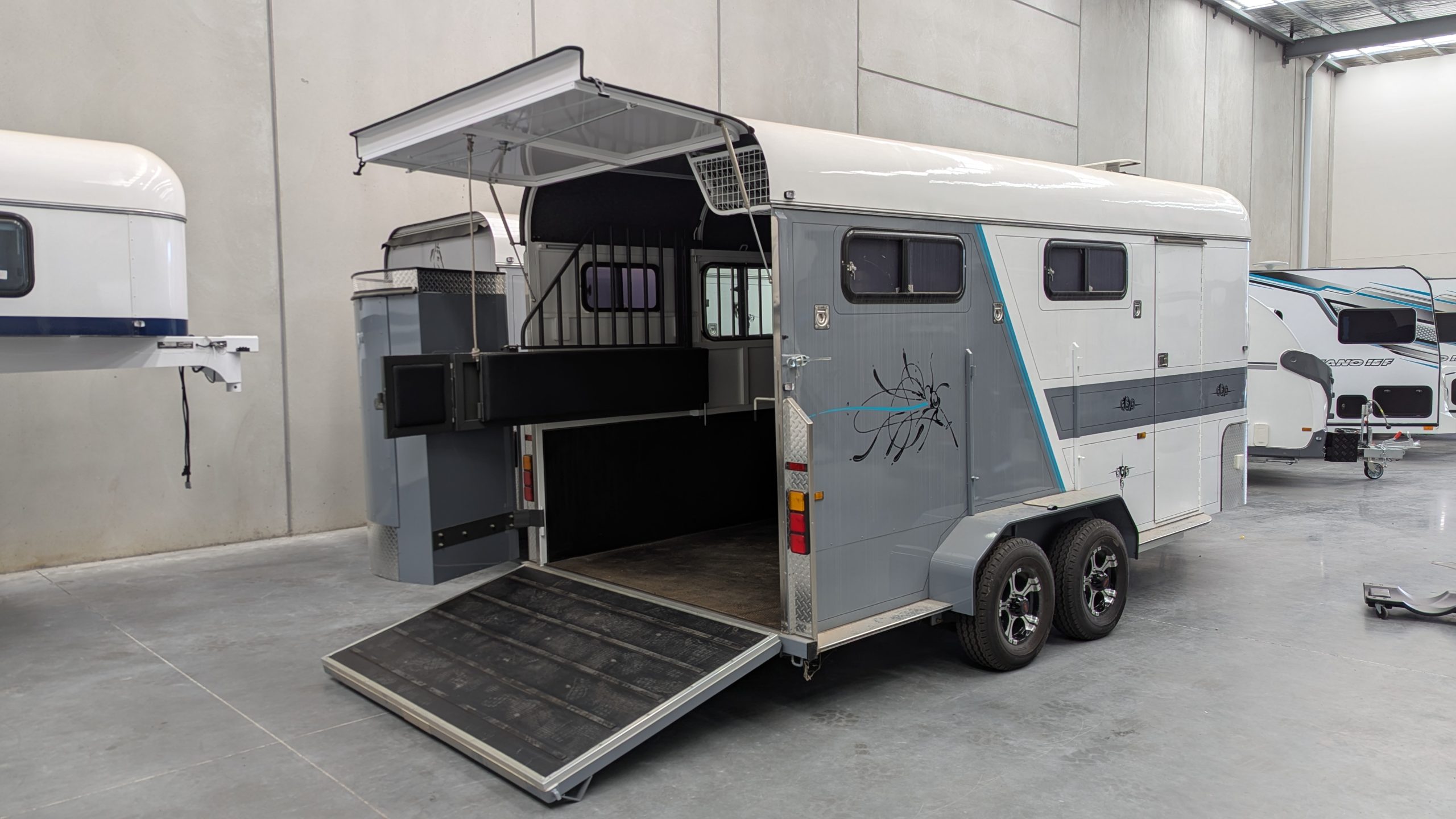

• Ramp Door Fiberglass Covered by Rubber Matting
• Special 6mm diameter Copper Hinges
• Fresh Water Filler with Safety Lock
• Power Coated Paint with Sewn Cushion, with Rubber Hanging to Floor
• Re-enforced Aluminium Flooring 18-20mm
• Anti Slip Rubber Floor 10mm, Ramp 10mm, Inner side panel 6mm

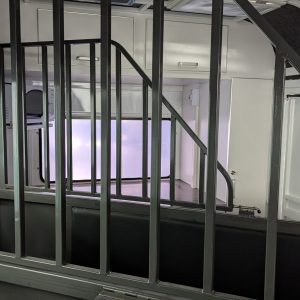

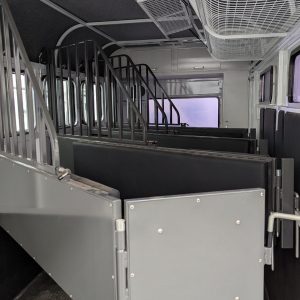

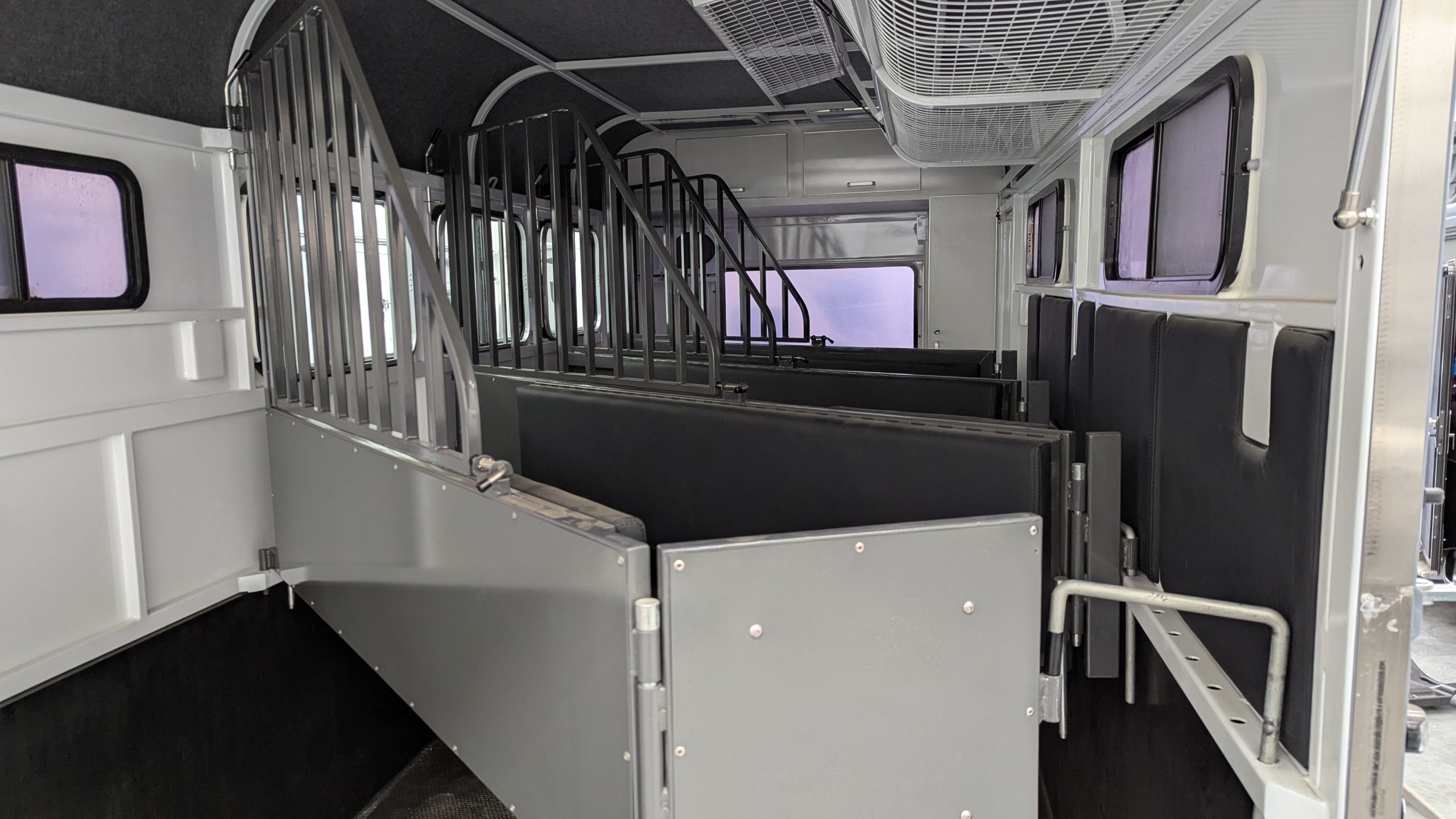

• Adjustable Bays with Removable Stallion Bars

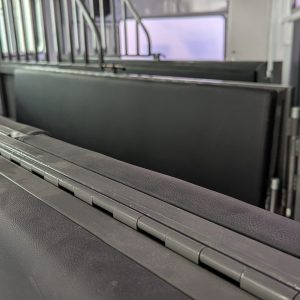

• Padded Horse Protection Frames
• Overhead Large Rug Box
• 1500mm Height Swing out Saddle Box for 3 Saddles

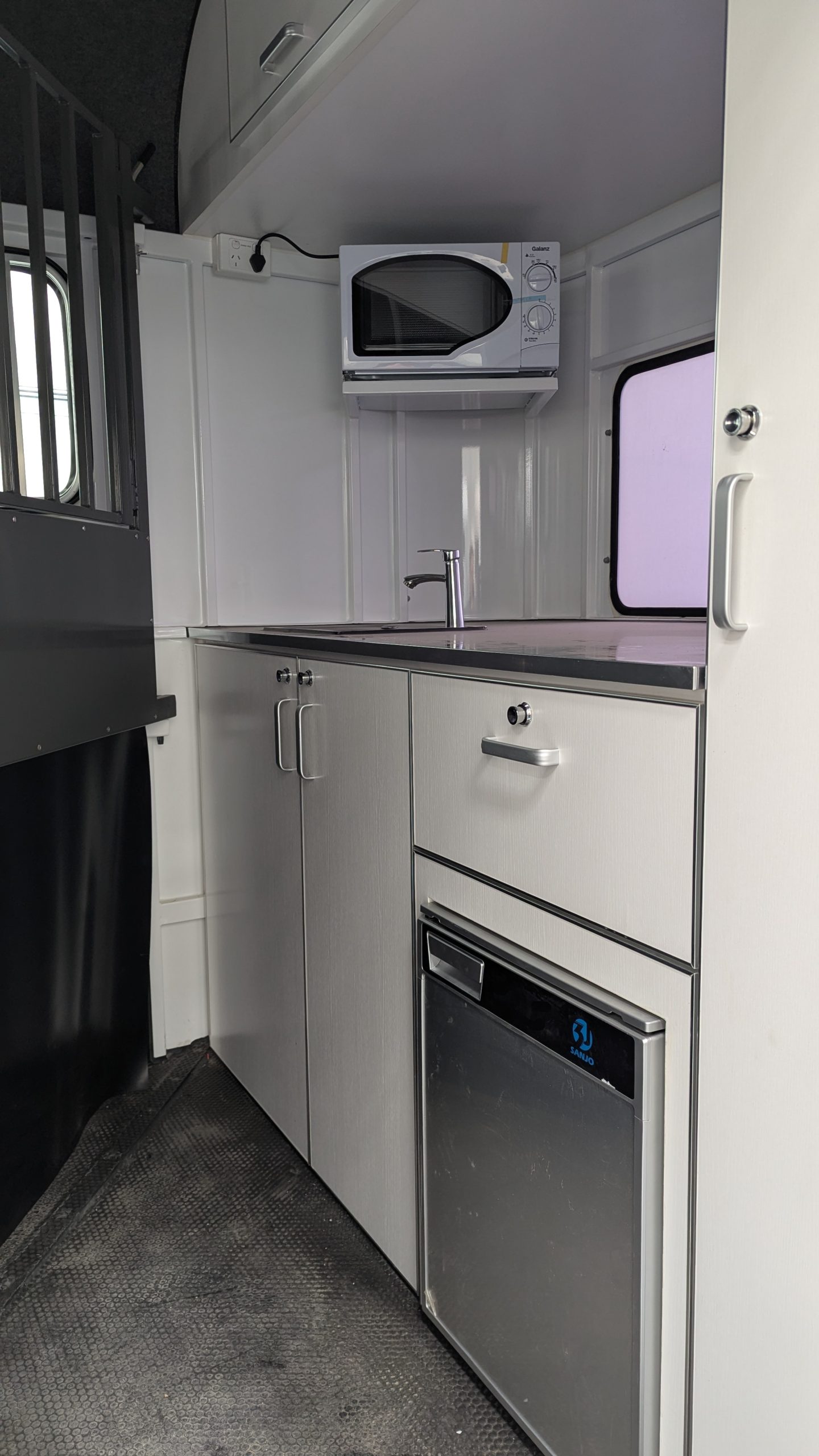

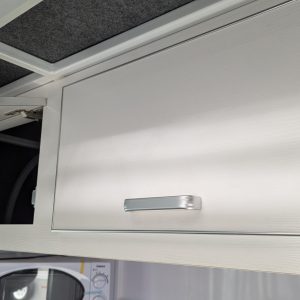

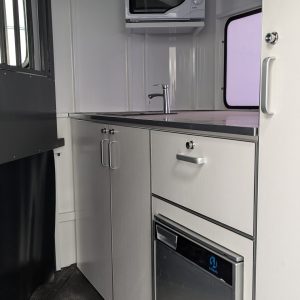

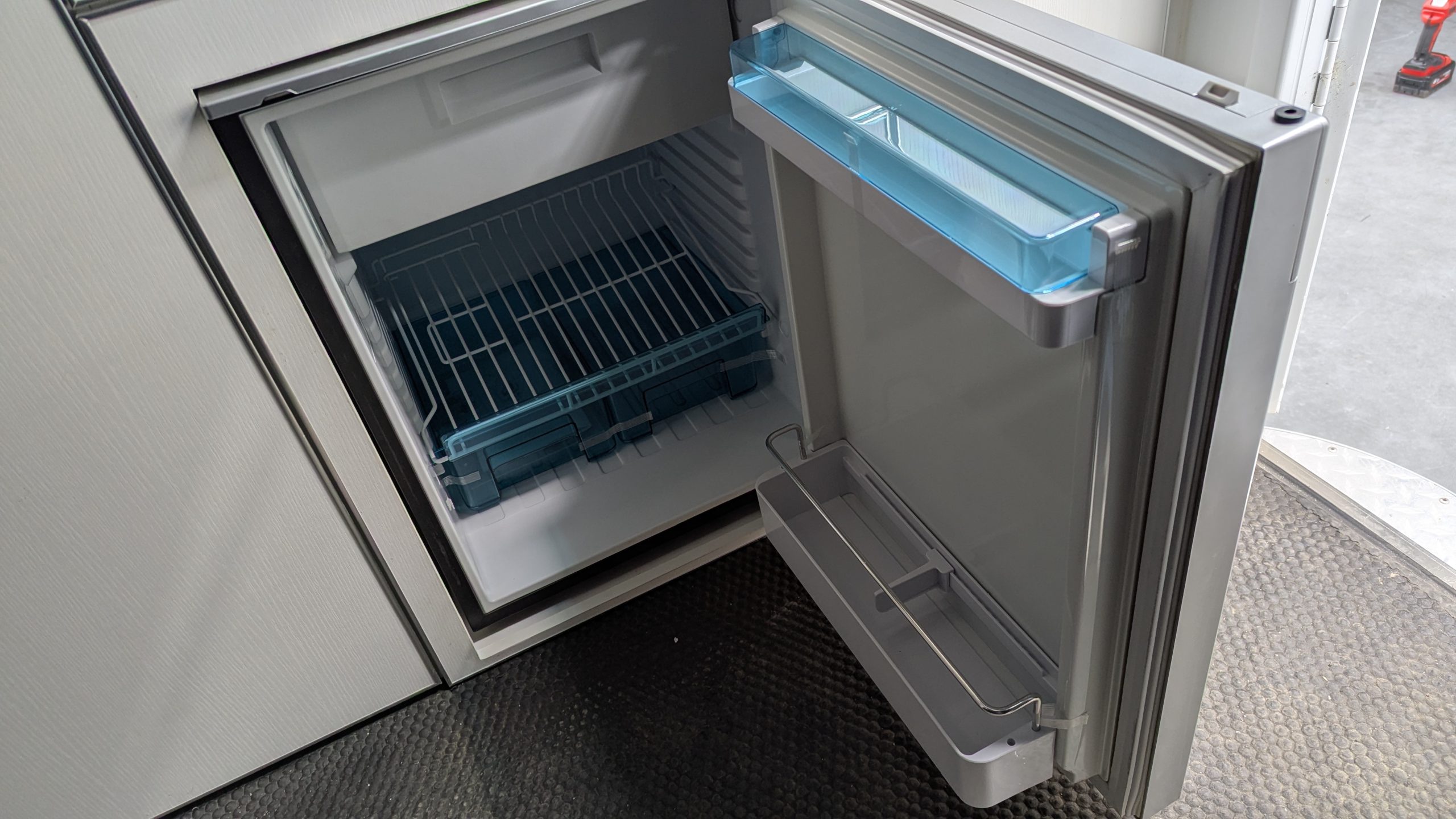

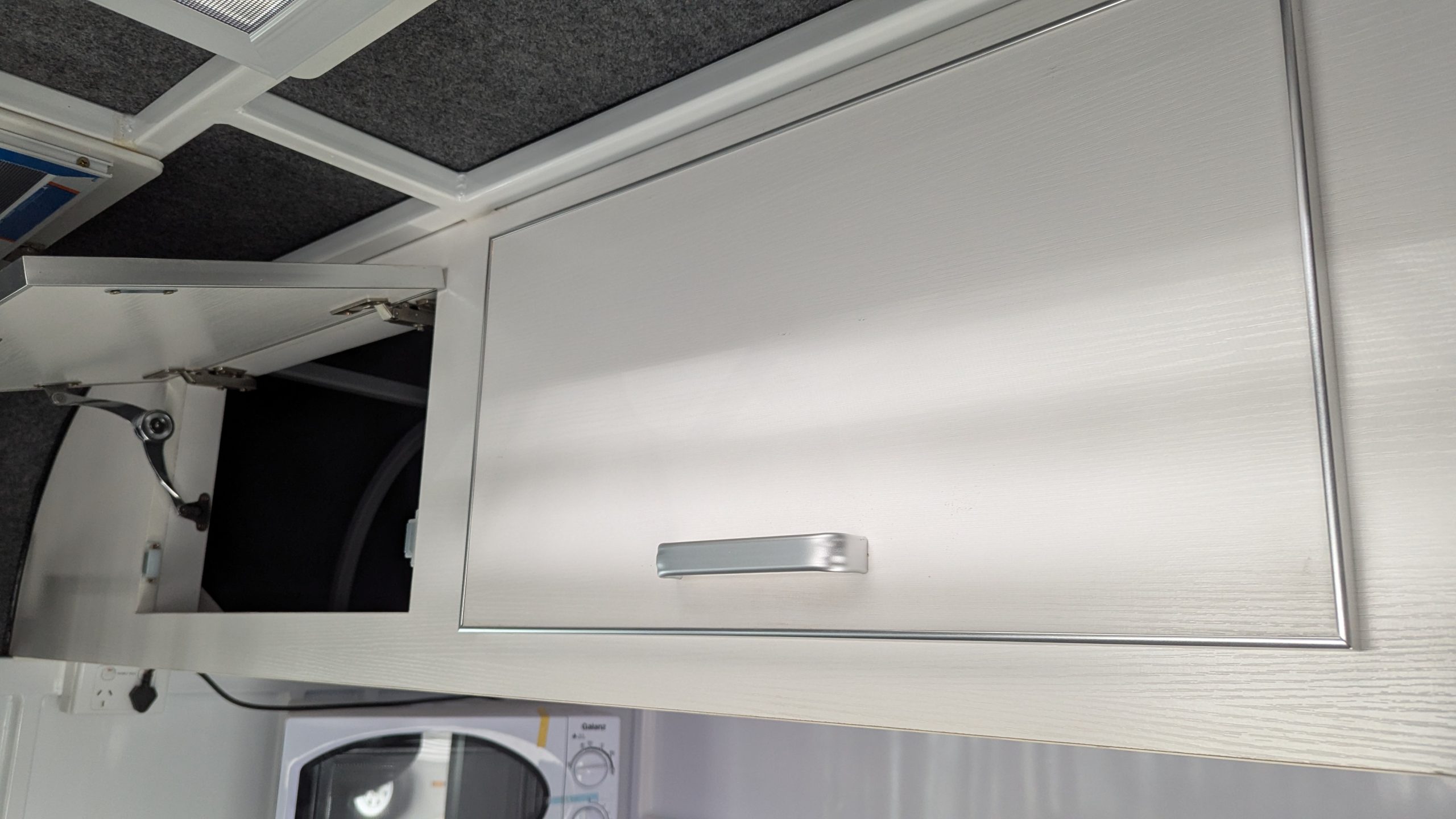

• Premium Kitchen & Modern Upright Wardrobe & Draw Storage

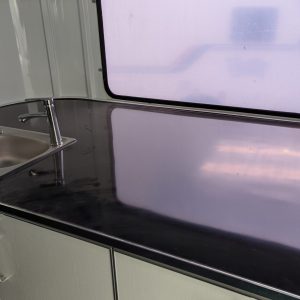

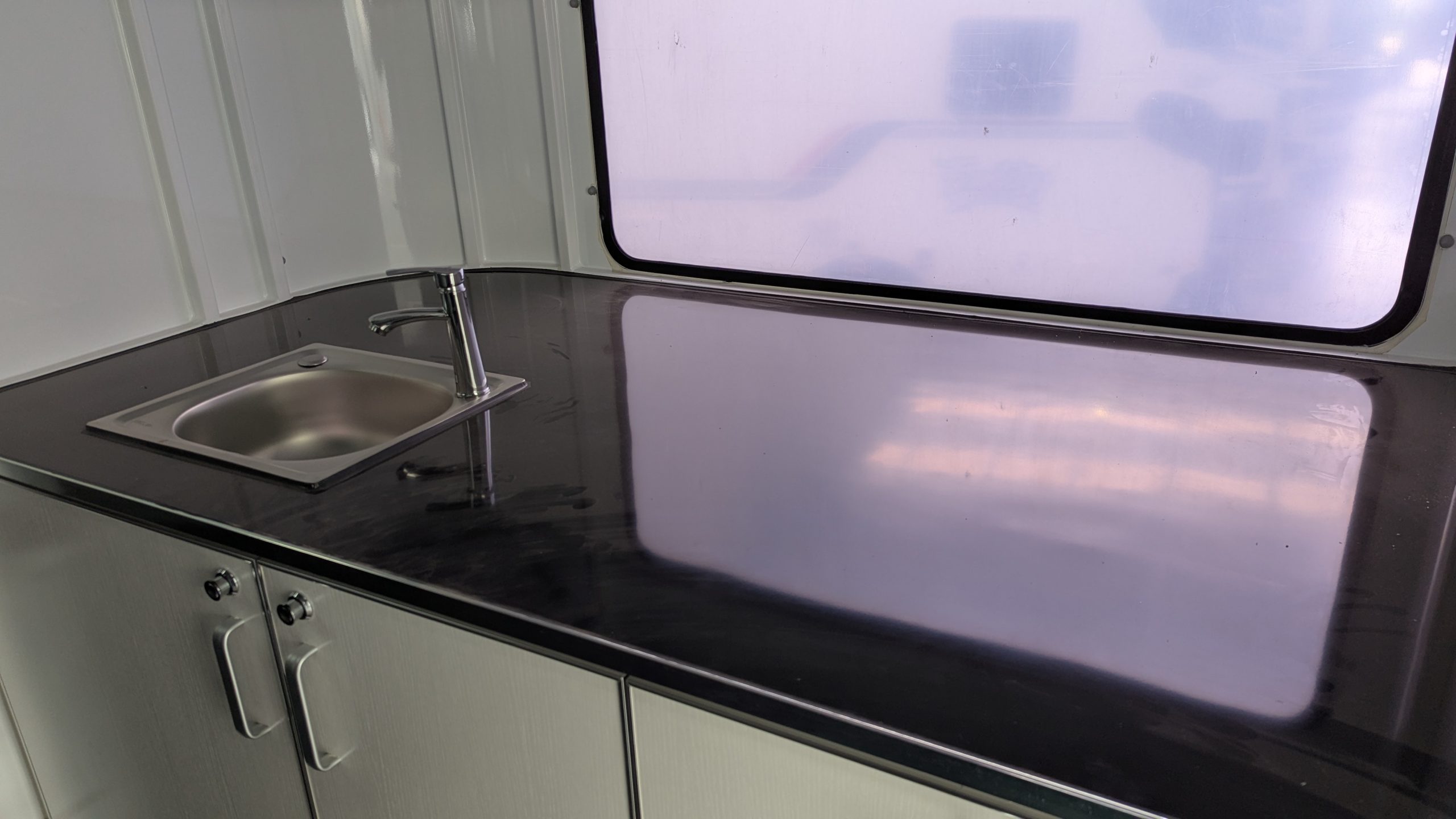

• Fully plumbed 12V Water Pump 11L/Min & Mixer Sinks, Taps & Hardware Pack
• Down Lights, Reading Lights, Bed Lights, Door Lights
• Work Lights, Awning, Boot Lights,
• Sequential Indicator Tail lights, Clearance Light
• 7 Pin Flat Male Plug
• 12 volt Emergency Breakaway System
