Double Horse Float: 2 Horse Angle Load Float

Safe & Spacious Ride

The 2 Horse Angle Load Float prioritizes the comfort and safety of your equine companions. Its spacious interior design maximizes functionality, offering a tranquil space with a well-thought-out layout. The divider features powder-coated paint, sewn cushions, and rubber extending to the floor for secure, comfortable separation. The aluminium floor is reinforced and covered with anti-slip rubber matting, complemented by a 10mm rubber mat on the ramp and 6mm on inner side panels for additional comfort and protection. Adjustable horse bays with removable stallion bars and padded protection frames ensure flexibility and safety. The float boasts ample storage, including a large overhead rug box, a front tack box with adjustable racks and hooks, and a 1500mm high swing-out saddle box for three saddles, underscoring its convenience. Enhanced lighting provides visibility and a calm atmosphere for both horses and handlers.

Strength & Storage

The 2 Horse Angle Load Float offers unmatched durability and safety, crafted with a galvanized steel chassis and reinforced with a heavy-duty checker plate. It features Australian Standard safety chains and a robust electric coupler with a 3500kg park brake, ensuring a secure journey for your equine friends. Its suspension system, equipped with rocker roller springs and solid axles, along with electric drum brakes, provides a smooth ride across all terrains. The body combines a fully welded steel frame with an FRP fiberglass roof for an ideal balance of strength and lightness, protected by a checker plate stone guard and metallic PPG paint for style and durability. Large tinted windows with fly screens offer excellent ventilation, while a pop-up vent keeps the interior comfortable. Security is enhanced with caravan-style triple lock doors, and a gas strut-assisted ramp door simplifies loading and unloading. This float is designed for those who demand safety, convenience, and style in horse transportation.

FLOORPLANS

2HAL-3260
Standard Package

$18,990 $21,990
$67 p/w
Apply For Finance Today*

SPECS

  • icon Saddle Box
ATM 3400 KG
Tare Mass 1450 KG
Ball Weight 140 KG
Internal(mm) L3210 W1930 H2225
Body(mm) L3260 W1980 H2280
Travel(mm) L4110 W2500 H2650
floorplan

Gallery

Finance Calculator

I would like to borrow

over

at

% interest rate

with

payments

*Conditions, Fees And Charges May Apply. Rate In This Calcultor Is Sample Only.

Request a Brochure

Request a Brochure

Find a dealer

  • VIC
  • NSW
  • QLD
  • RVBarn Pakenham
  • Heatherbrae Store
  • Coopers Plains

Contact Us

Trail Trekker contact form

"*" indicates required fields

Hidden
This field is for validation purposes and should be left unchanged.

2HAL-3660
Standard Package

$20,988 $25,990
$73 p/w
Apply For Finance Today*

SPECS

  • icon 60L
  • icon Kitchen
  • icon Saddle Box
ATM 3400 KG
Tare Mass 1600 KG
Ball Weight 160 KG
Internal(mm) L3610 W1930 H2225
Body(mm) L3660 W1980 H2280
Travel(mm) L4510 W2500 H2650
floorplan

Gallery

Finance Calculator

I would like to borrow

over

at

% interest rate

with

payments

*Conditions, Fees And Charges May Apply. Rate In This Calcultor Is Sample Only.

Request a Brochure

Request a Brochure

Find a dealer

  • VIC
  • NSW
  • QLD
  • RVBarn Pakenham
  • Heatherbrae Store
  • Coopers Plains

Contact Us

Trail Trekker contact form

"*" indicates required fields

Hidden
This field is for validation purposes and should be left unchanged.

2HAL-4000
Standard Package

$26,990
$94 p/w
Apply For Finance Today*

SPECS

  • icon 60L
  • icon Kitchen
  • icon Saddle Box
ATM 3400 KG
Tare Mass 1800 KG
Ball Weight 180 KG
Internal(mm) L4070 W1930 H2225
Body(mm) L4120 W1980 H2280
Travel(mm) L4970 W2500 H2650

Gallery

Finance Calculator

I would like to borrow

over

at

% interest rate

with

payments

*Conditions, Fees And Charges May Apply. Rate In This Calcultor Is Sample Only.

Request a Brochure

Request a Brochure

Find a dealer

  • VIC
  • NSW
  • QLD
  • RVBarn Pakenham
  • Heatherbrae Store
  • Coopers Plains

Contact Us

Trail Trekker contact form

"*" indicates required fields

Hidden
This field is for validation purposes and should be left unchanged.

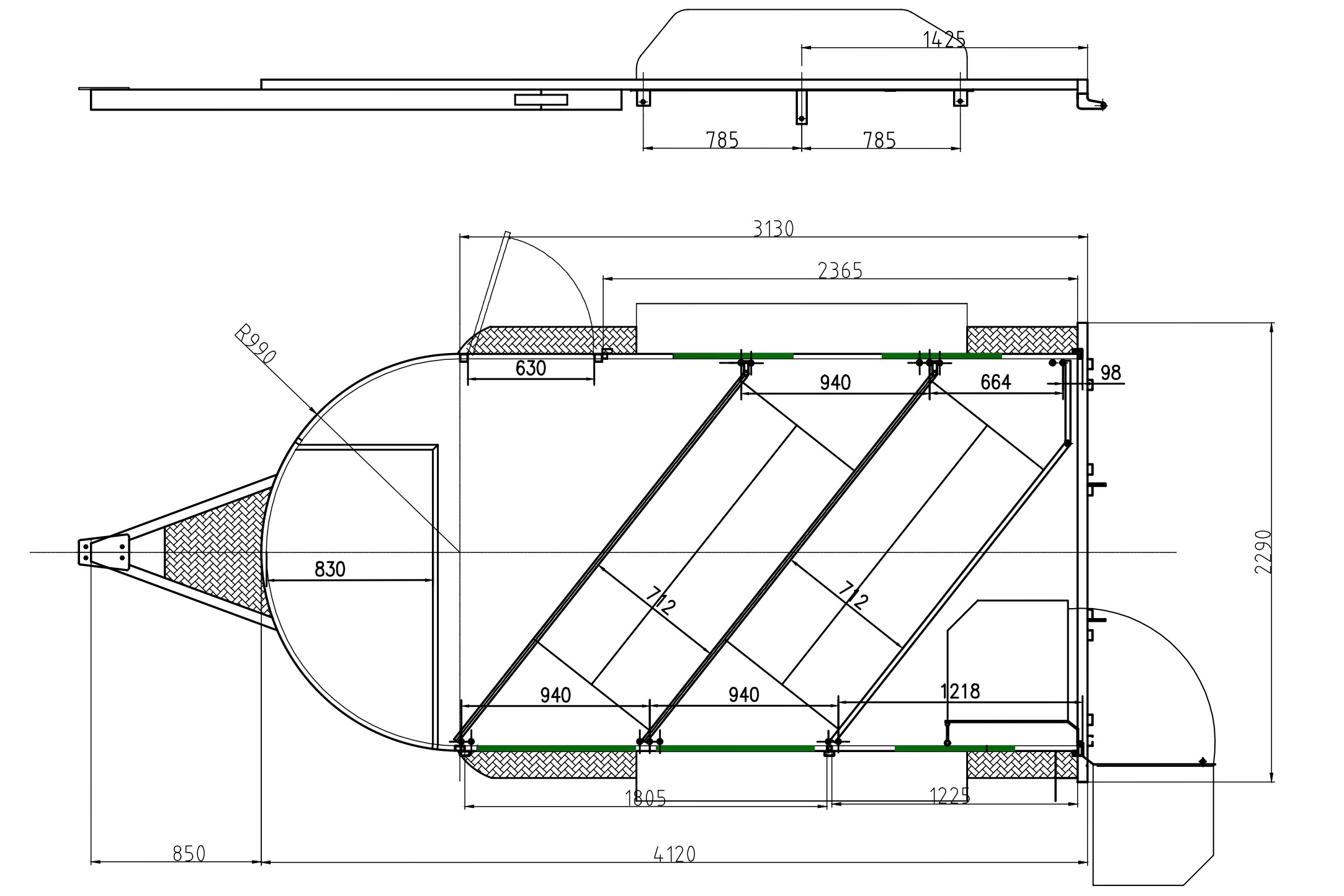

2HAL-4120
Standard Package

$29,990
$105 p/w
Apply For Finance Today*

SPECS

  • icon 60L
  • icon Kitchen
  • icon Saddle Box
ATM 3400 KG
Tare Mass 1800 KG
Ball Weight 180 KG
Internal(mm) L3610 W1930 H2225
Body(mm) L4120 W1980 H2280
Travel(mm) L4970 W2500 H2650
floorplan

Gallery

Finance Calculator

I would like to borrow

over

at

% interest rate

with

payments

*Conditions, Fees And Charges May Apply. Rate In This Calcultor Is Sample Only.

Request a Brochure

Request a Brochure

Find a dealer

  • VIC
  • NSW
  • QLD
  • RVBarn Pakenham
  • Heatherbrae Store
  • Coopers Plains

Contact Us

Trail Trekker contact form

"*" indicates required fields

Hidden
This field is for validation purposes and should be left unchanged.

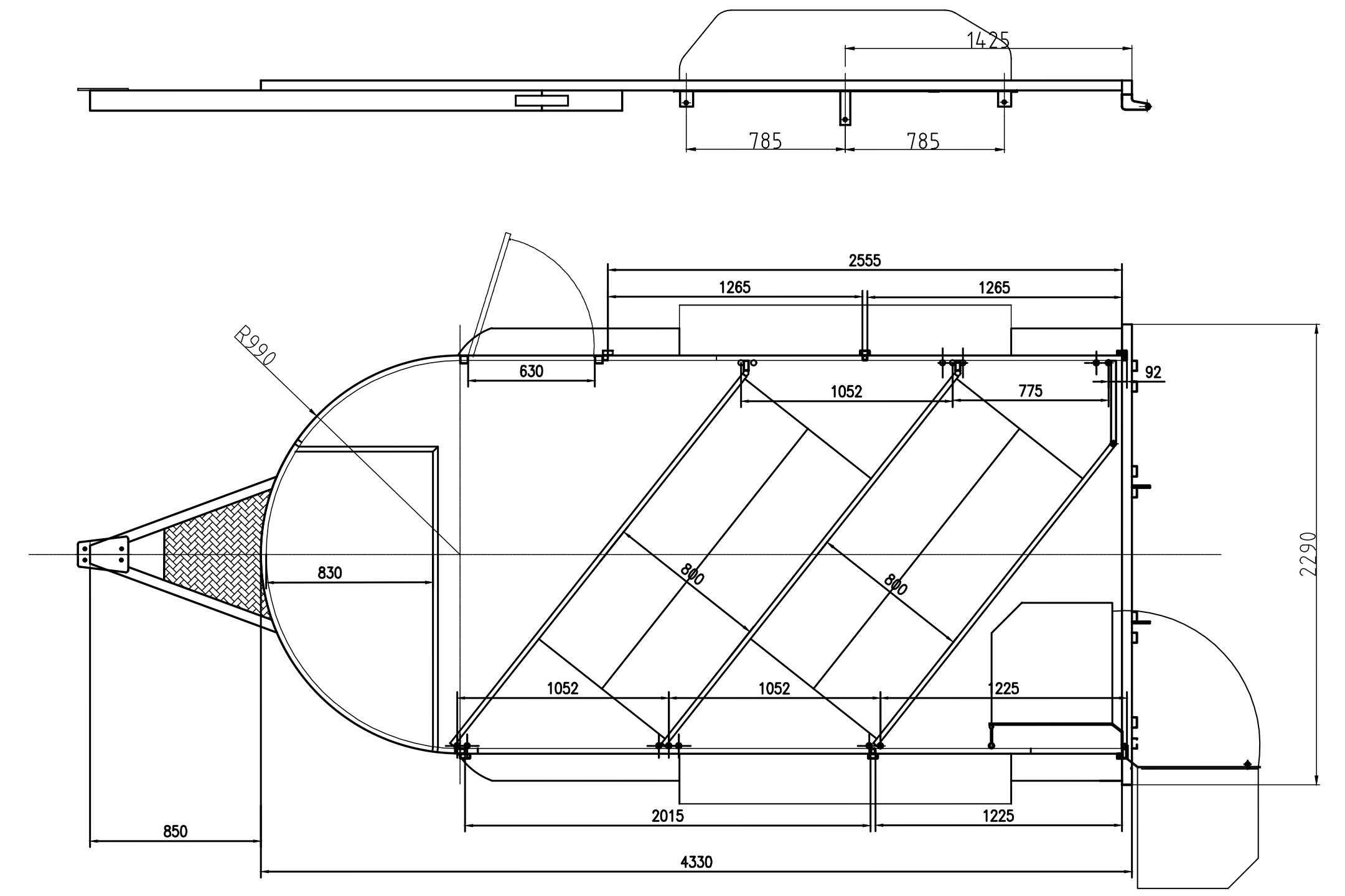

2HAL-4330
Standard Package

$25,990 $30,990
$91 p/w
Apply For Finance Today*

SPECS

  • icon 60L
  • icon Kitchen
  • icon Saddle Box
ATM 3400 KG
Tare Mass 1850 KG
Ball Weight 180 KG
Internal(mm) L4280 W1930 H2225
Body(mm) L4330 W1980 H2280
Travel(mm) L5180 W2500 H2650
floorplan

Gallery

Finance Calculator

I would like to borrow

over

at

% interest rate

with

payments

*Conditions, Fees And Charges May Apply. Rate In This Calcultor Is Sample Only.

Request a Brochure

Request a Brochure

Find a dealer

  • VIC
  • NSW
  • QLD
  • RVBarn Pakenham
  • Heatherbrae Store
  • Coopers Plains

Contact Us

Trail Trekker contact form

"*" indicates required fields

Hidden
This field is for validation purposes and should be left unchanged.

2HAL-4670
Standard Package

$32,990
$115 p/w
Apply For Finance Today*

SPECS

  • icon 60L
  • icon Kitchen
  • icon Saddle Box
ATM 3400 KG
Tare Mass 1850 KG
Ball Weight 180 KG
Internal(mm) L4280 W1930 H2225
Body(mm) L4330 W1980 H2280
Travel(mm) L5180 W2500 H2650

Finance Calculator

I would like to borrow

over

at

% interest rate

with

payments

*Conditions, Fees And Charges May Apply. Rate In This Calcultor Is Sample Only.

Request a Brochure

Request a Brochure

Find a dealer

  • VIC
  • NSW
  • QLD
  • RVBarn Pakenham
  • Heatherbrae Store
  • Coopers Plains

Contact Us

Trail Trekker contact form

"*" indicates required fields

Hidden
This field is for validation purposes and should be left unchanged.

Description 2HAL-E 2HAL-3620 2HAL-3590W 2HAL-3590K 2HAL-3660 2HAL-4120 2HAL-4330
Overview
Bay Size Length Bay Size Length (MM) 2400 2400 2400 2400 2400 2400 2450
Bay Size Width Bay Size Width (MM) 720 780 800 730 702 712 800
ATM ATM (KG) 3400 3400 3400 3400 3400 3400 3400
Tare Tare Mass (KG) 1380 1450 1500 1500 1500 1800 1850
Ball Weight Ball Weight (KG) 180 180 180 180 180 200 230
Payload Payload (KG) 2020 1950 1900 1900 1900 1600 1550
Travel Length Travel Length (MM) 4110 4140 4440 4500 4690 4970 5180
Travel Width Travel Width (MM) 2500 2500 2500 2500 2500 2500 2500
Travel Height Travel Height (MM) 2650 2650 2650 2650 2650 2650 2650
Internal Length Internal Length (MM) 3210 3310 3450 3525 3620 4020 4235
Internal Width Internal Width (MM) 1930 1930 1930 1930 1930 1930 1930
Internal Height Internal Height (MM) 2225 2225 2225 2225 2225 2225 2225
Body Length Body Length (MM) 3260 3620 3590 3590 3660 4120 4330
Body Width Body Width (MM) 1980 1980 1980 1980 1980 1980 1980
Body Height Body Height (MM) 2280 2280 2280 2280 2280 2280 2280
Berth Fixed Living Berth Standard – – – – – – –
Berth – Horse Zone Foldable Barrier Bed in Horse Zone 2 2 2 2 2 2 2
*Weights and measurements are subjects to configurations.
Chassis
Chassis Chassis RHS Galvanised 3.5mm-4mm ● ● ● ● ● ● ●
Drawbar RHS 100 × 50 × 5 Galvanised Covered by High Strength Aluminium ● ● ● ● ● ● ●
Safety Chain 2 × Australian Standard Safety Chains ● ● ● ● ● ● ●
Coupling 50mm Electric Coupling 3500kg with Park Brake Handle ● ● ● ● ● ● ●
Coupling 70mm Electric Coupling 4500kg with Park Brake Handle – – – – – – –
Coupling 10T Gooseneck Horsefloat Coupling – – – – – – –
Jockey Wheel Heavy Duty Swing up Jockey Wheel ● ● ● ● ● ● ●
Chassis Coating Expoxy Zinc Paint on Galvanised RHS Frames ● ● ● ● ● ● ●
Side Steps Heavy Duty Checker Plate Side Steps ● ● ● ● ● ● ●
Fresh Water Fresh Water Tank & Checker Plate Protector – – 60L 60L 60L 60L 60L
Suspensions & Wheels
Axle Solid 50mm × 50mm Square Tandem Axle 2000kg ● ● ● ● ● ● ●
Suspension 60mm×7mm Heavy Duty Rocker Roller Leaf Spring ● ● ● ● ● ● ●
Drum Brake Electric Drum Brakes with Electric Backing Plate ● ● ● ● ● ● ●
Park Brake Mechanical Hand Brake ● ● ● ● ● ● ●
Rim 14″/15″ Alloy Wheel and Sparewheel 14″ 14″ 14″ 14″ 14″ 14″ 14″
Tyre Commercial Light Truck Tyre 185R14C OR 195R14C 185 185 185 185 185 185 185
Mud Flaps Embossed Mud Flaps Rear ● ● ● ● ● ● ●
Body
Exterior Paint Customize Metallic PPG Paint ● ● ● ● ● ● ●
Frame Fully Welded RHS Galvanised Steel Wall Frame 2.5mm ● ● ● ● ● ● ●
Body Panel/Wall Galvanised Sheet Panel Walls Body with Aluminium Checker Plate ● ● ● ● ● ● ●
Roof Special Molded FRP Fiber-reinforced Polymer Fibre Glass ● ● ● ● ● ● ●
Stone Guard Checker Plate Stone Guard ● ● ● ● ● ● ●
Locks Quality Waterproof & Anti-Rust Compression and T Locks ● ● ● ● ● ● ●
Horse Ring Horse Rings and HD Tie ups ● ● ● ● ● ● ●
Horse Yard Double Panel Aluminum Portable Float Holding Yard ○ ○ ○ ○ ○ ○ ○
Awning Waterproof Wind Out Cassette Awning – – – – – – ○
External
Windows Side Sash Windows with Fly Screens – – – – – – –
Windows Drop Down Slide Windows with Fly Screens ● ● ● ● ● ● ●
Windows Double Glazed Push Out Caravan Windows with Blinds & Fly Screens – – – – – – –
Vent Pop up Internal Air Vent ● ● ● ● ● ● ●
Door Standard Steel Entry Door ● ● ● ● ● ● ●
Door Caravan Triple Lock Round Corner Security Entry Door – – ○ ○ ○ ○ ○
Rear Upper Door Aluminum Door with High Intensity Anti-Rust Gas Strut ● ● ● ● ● ● ●
Rear Ramp Ramp Door Fiberglass Covered by Rubber Matting ● ● ● ● ● ● ●
Rear Ramp Hinge Special 6mm diameter Copper Hinges ● ● ● ● ● ● ●
Front Tool Box Heavy Duty Aluminium Tool Box on Drawbar ○ ○ ○ ○ ○ ○ ○
Side Tool Box Heavy Duty Aluminium Tool Box on Mudguard ○ ○ ○ ○ ○ ○ ○
Water Filler Fresh Water Filler with Safety Lock – – ● ● ● ● ●
Internal & Storage
Divider Power Coated Paint with Sewn Cushion, with Rubber Hanging to Floor ● ● ● ● ● ● ●
Floor Re-enforced Aluminium Flooring 18–20mm ● ● ● ● ● ● ●
Rubber Matting Anti Slip Rubber Floor 10mm, Ramp 10mm, Inner side panel 6mm ● ● ● ● ● ● ●
Horse Bay Adjustable Bays with Removable Stallion Bars ● ● ● ● ● ● ●
Horse Zone Padded Horse Protection Frames ● ● ● ● ● ● ●
Rug Box Overhead Large Rug Box ● ● ● ● ● ● ●
Front Tack Box Large Front Tack Box with Adjustable Saddle Racks Bridle Hooks ○ ○ ○ ○ ○ ○ ○
Swing Saddle Box 1500mm Height Swing out Saddle Box for 3 Saddles ● ● ● ● ● ● ●
Living Zone
Living Zone Full Roller Dividing Wall Between Horses And Living – – – – – – –
Kitchen & Furniture Standard Kitchen & Cabinet Set – – ● ● ● – –
Kitchen & Furniture Premium Kitchen & Modern Upright Wardrobe & Draw Storage – – – – – ● ●
Table Dinning Height Adjustable Table – – – – – – –
Seating Plush Faux Leather Seating with Storage – – – – – – –
Top Bunk Top Bunk Beds with Foam Mattress – – – ○ ○ ○ ○
Bottom Bed Plush Faux Leather Seating convert to Bottom Bunk Bed – – – ○ ○ ○ ○
Main Bed Plush King Size Pocket Spring Mattress – – – – – – –
Ensuite Hot Water Shower – – – – – – –
Pump & Tap 12V Water Pump 11L/Min & Mixer Sinks, Taps – – ● ● ● ● ●
Electrical
Internal Lighting Down Lights, Reading Lights, Bed Lights, Door Lights ● ● ● ● ● ● ●
External Lighting Work Lights, Awning, Boot Lights ● ● ● ● ● ● ●
Tail Light Sequential Indicator Tail lights, Clearance Light ● ● ● ● ● ● ●
Towing Plug 7 Pin Flat Male Plug ● ● ● ● ● ● ●
Breakaway 12 volt Emergency Breakaway System ● ● ● ● ● ● ●
240V Power Internal 240V GPO, External 15A Inlet ○ ○ ○ ○ ○ ○ ○
Fridge & Microwave Internal Fridge & Microwave 240V ○ ○ ○ ○ ○ ○ ○
12v Battery Pack 100A/H AGM Battery & Charger system ○ ○ ○ ○ ○ ○ ○
